FAYETTEVILLE, GA, USA, August 15, 2023/EINPresswire.com/ -- Distributed fiber-optic sensing (DFOS) as a precise real-time monitoring technique are in high demand for various industrial applications. Scientists in China proposed a hybrid DFOS system by integrating Rayleigh Brillouin and Raman scattering from an optical fiber in a simplified way, which can significantly reduce the cost and system complexity compared with the three sets of conventional independent systems. It is particularly suitable for long-distance distributed sensing applications which requires simultaneous measurements of multiple parameters.

The real-time monitoring of facilities, particularly large facilities (such as rail transit systems, large bridges, and buildings), can provide information regarding their surrounding environment and allow their health conditions to be assessed, which is essential for establishing the current concept of smart cities based on the Internet of Things. As a precise real-time monitoring technique, distributed fiber-optic sensing (DFOS) systems, which require long-distance simultaneous measurements along a sensing fiber, are in high demand for various industrial applications. However, most DFOS systems can only measure a single kind of parameter, which limits the use in applications. Additionally, a simple combining of different DFOS systems is complex and costly.

In a new paper published in Light: Advanced Manufacturing, a team of scientists, led by Professor Xinyu Fan from Shanghai Jiao Tong University, China, proposed a simplified hybrid DFOS system for simultaneously measuring multi-parameters along the sensing fiber. They used a normal single-mode fiber as a sensor to obtain the temperature, strain and vibration information of the optical fiber with the length of several kilometers. They integrated three schemes using different backscattered lightwave and simplified the hybrid systems. The proposed hybrid system requires only one light source, two receiving ends and a single access of the fiber for launching lightwave, which highly reduces the complexity of application. As such, the simplified hybrid system can be used in real-time monitoring of large structure, automated control and perimeter security. The technique can be a powerful tool promoting the construction of smart cities.

Among different DFOS systems, a technique using Rayleigh backscattering known as phase-sensitive optical time-domain reflectometry (φ-OTDR), which is used to measure dynamic parameters such as vibration. Brillouin optical time domain analysis (BOTDA) based on stimulated Brillouin scattering is used to measure temperature and static strains with high signal-to-noise ratio. Raman scattering can be used in Raman optical time-domain reflectometry (ROTDR) to measure the distributed temperature without being disturbed by strain as it is only temperature sensitive.

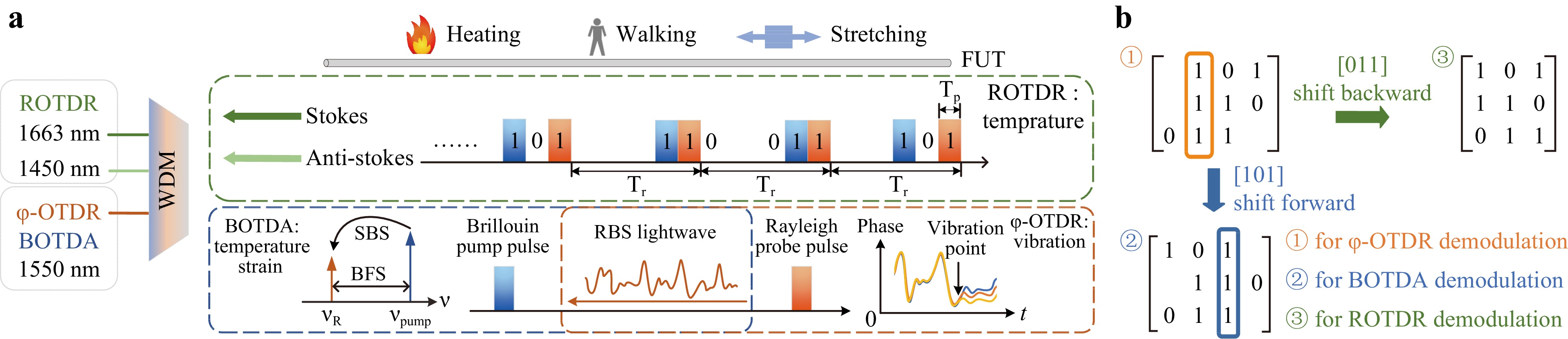

The hybrid DFOS system integrates the three different scattering schemes. Rayleigh scattering is used for vibration sensing and also acts as the probe of Brillouin scattering process to realize temperature and strain measurement. Raman scattering is used to overcome the temperature-strain cross sensitivity. Pulse code modulation is employed to separate Raman scattering of two pulses with very close optical frequencies. In this way, a single-end simplified hybrid DFOS system works successfully for simultaneous multi-parameters measurement.

The hybrid system shows its ability of measuring temperature, strain and vibration along a 9-kilometer long single mode fiber, with a favorable measurement accuracy.

###
References
DOI
10.37188/lam.2023.016
Original Source URL
https://doi.org/10.37188/lam.2023.016
Funding information
National Natural Science Foundation of China (NSFC) under Grant No. 61735015, 62275151, and the Major Key Project of PCL.
About Light: Advanced Manufacturing
The Light: Advanced Manufacturing is a new, highly selective, open-access, and free of charge international sister journal of the Nature Journal Light: Science & Applications. It will primarily publish innovative research in all modern areas of preferred light-based manufacturing, including fundamental and applied research as well as industrial innovations.
